DH360-L Horizontal Directional Drill
Share This Product:
  • Product Points of Sale
  • Specification
  • Main Configuration
  • ● The power head motor is driven by 6K hydraulic system and has good stability.

    ● The whole machine is equipped with a booster, which adopts initiate patent for clutch invention at home.

    ● Vehicle-mounted cab is equipped with air-conditioning. Operating table is humanized design, it will be more comfortable and convenient to operate.

    ● Driven by American Permco High Pressure Pump, it has high torque and high efficiency.

    ● The configuration is flexible and diversified. The whole machine can be equipped with manipulators, hydraulic anchors and other devices to improve the construction efficiency.

    ● The circuit design is scientific and reasonable, the failure rate is low, and it is easy to maintain.

    Note: With technological progress, products will be improved continuously. Please forgive us for not notifying you of any changes in parameters and configurations.

Engine

Brand

Cummins

Mud pump

Max flow rate(L/min)

320

Rated Power kW

153

Max pressure(MPa)

8±0.5

Thrust-Pull

Style

Rack and pinion

Pipe

Diameter*Length(mm*m)

Φ73*3

Thrust/Pull force
(kN)

360/360

Entry angle

°

10-22

Thrust/Pull force
(m/min)

0-36

Backreamer diameter

mm

Φ1000

Rotation

Torque(N·m)

16000

Weight

T

12.5

Spindle speed(r/min)

0-132

Dimension
(L*W*H)

mm

7100*2200
*2600

Engine

Hydraulic pump

Main hydraulic motor

Reducer

Mud pump

Rotation

Push&pull

Cummins

Permco,US

Eaton,US

Eaton,US

Brevini,Italy

Hengyang central

Feedback from contact with us
Related Product
DH280-L Horizontal Directional Drill
DH280-L Horizontal Directional Drill
As a specialist of DH280-L Horizontal Directional Drill , Jiangsu DeHang Construction Machinery Equi...
Learn More
DH360/550-L Horizontal Directional Drill
DH360/550-L Horizontal Directional Drill
Before shipping , Jiangsu DeHang Construction Machinery Equipment Co., Ltd’sDH360/550-L Horizontal ...
Learn More

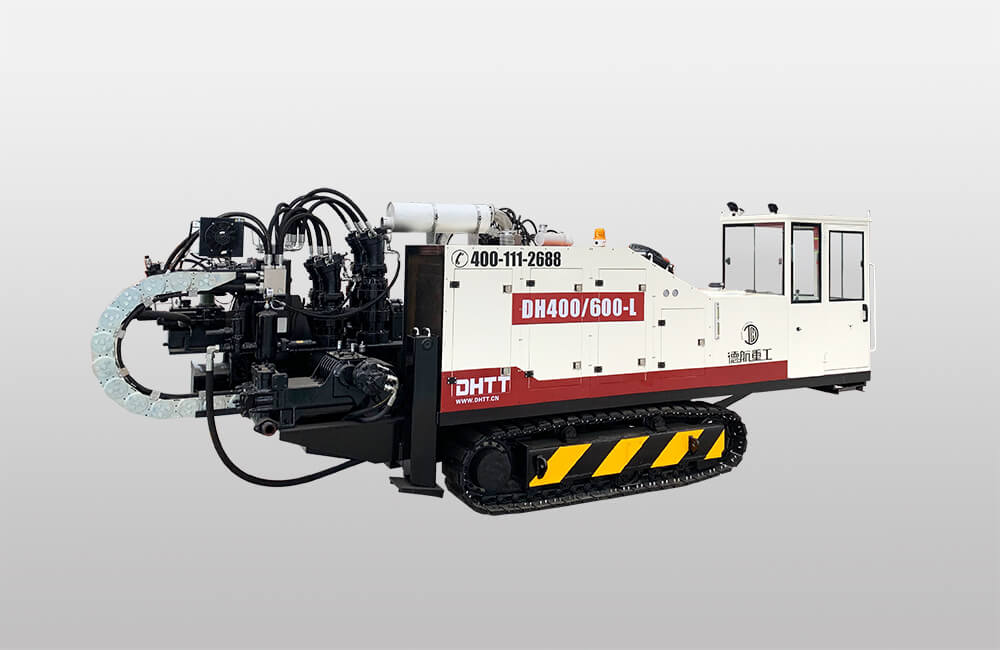

DH400/600-L Horizontal Directional Drill
