DH1200/1800-L Horizontal Directional Drill
Share This Product:
  • Product Points of Sale
  • Specification
  • Main Configuration
  • ● Drilling head spindle floating technology can protect drill pipe threads greatly and improve the service life of drill pipe.

    ● Drill pipes of different specifications can be installed due to the Clamper Separable Patents.

    ● Equipped with Sauer plunger closed pump, it has high pressure and large torque.

    ● Equipped with Cummins high-power engine to ensure the smooth construction.

    ● High and low speed push-pull rotating system and series-parallel system realize high and low speed of power head push-pull. Increase the adaptability of drilling rig to working conditions.

    ● The cab is equipped with air conditioning, which can be lifted and lowered, and broadens the operator's vision greatly.

    Note: With technological progress, products will be improved continuously. Please forgive us for not notifying you of any changes in parameters and configurations.

Engine

Brand

Cummins

Mud pump

Max flow rate(L/min)

800

Rated Power kW

336

Max pressure(MPa)

8±0.5

Thrust-Pull

Style

Rack and pinion

Pipe

Diameter*Length(mm*m)

Φ114*6

Thrust/Pull force
(kN)

1200/1800

Entry angle

°

8-16

Thrust/Pull force
(m/min)

0-28

Backreamer diameter

mm

Φ1600

Rotation

Torque(N·m)

55000

Weight

T

28

Spindle speed(r/min)

0-100

Dimension
(L*W*H)

mm

12000*2750
*2800

Engine

Hydraulic pump

Main hydraulic motor

Reducer

Transfer case

Mud pump

Rotation

Push&pull

Cummins

Sauer,US

Sam,Italy

Huade/Liyuan

Brevini,Italy

Stiebel,German

Hengyang central

Push-pull motor can be equipped with American Sauer.
Feedback from contact with us
Related Product

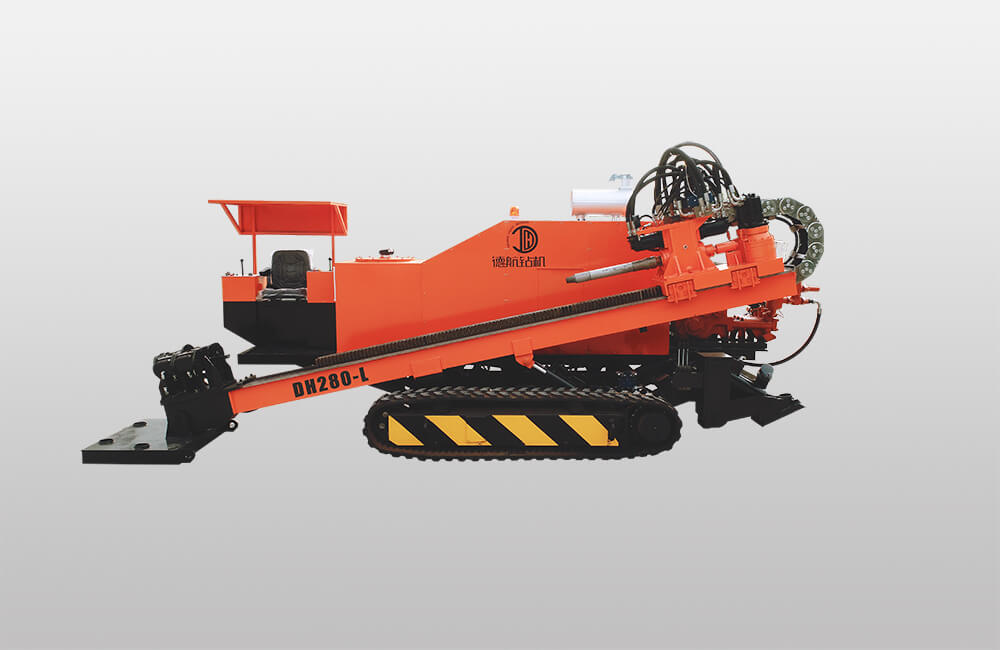

DH280-L Horizontal Directional Drill
DH280-L Horizontal Directional Drill
As a specialist of DH280-L Horizontal Directional Drill , Jiangsu DeHang Construction Machinery Equi...
Learn More

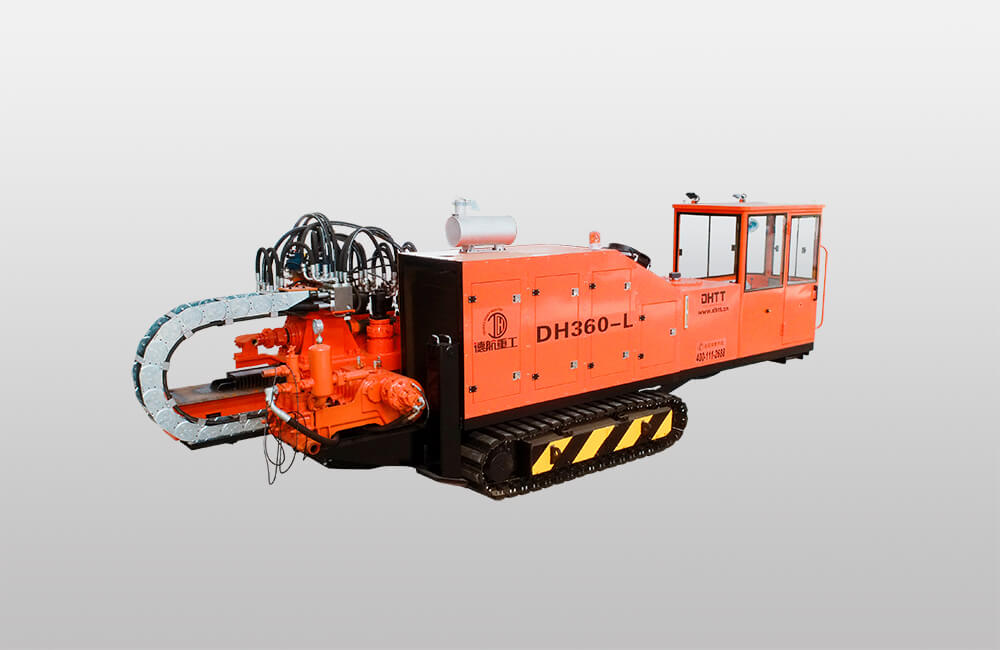

DH360-L Horizontal Directional Drill
